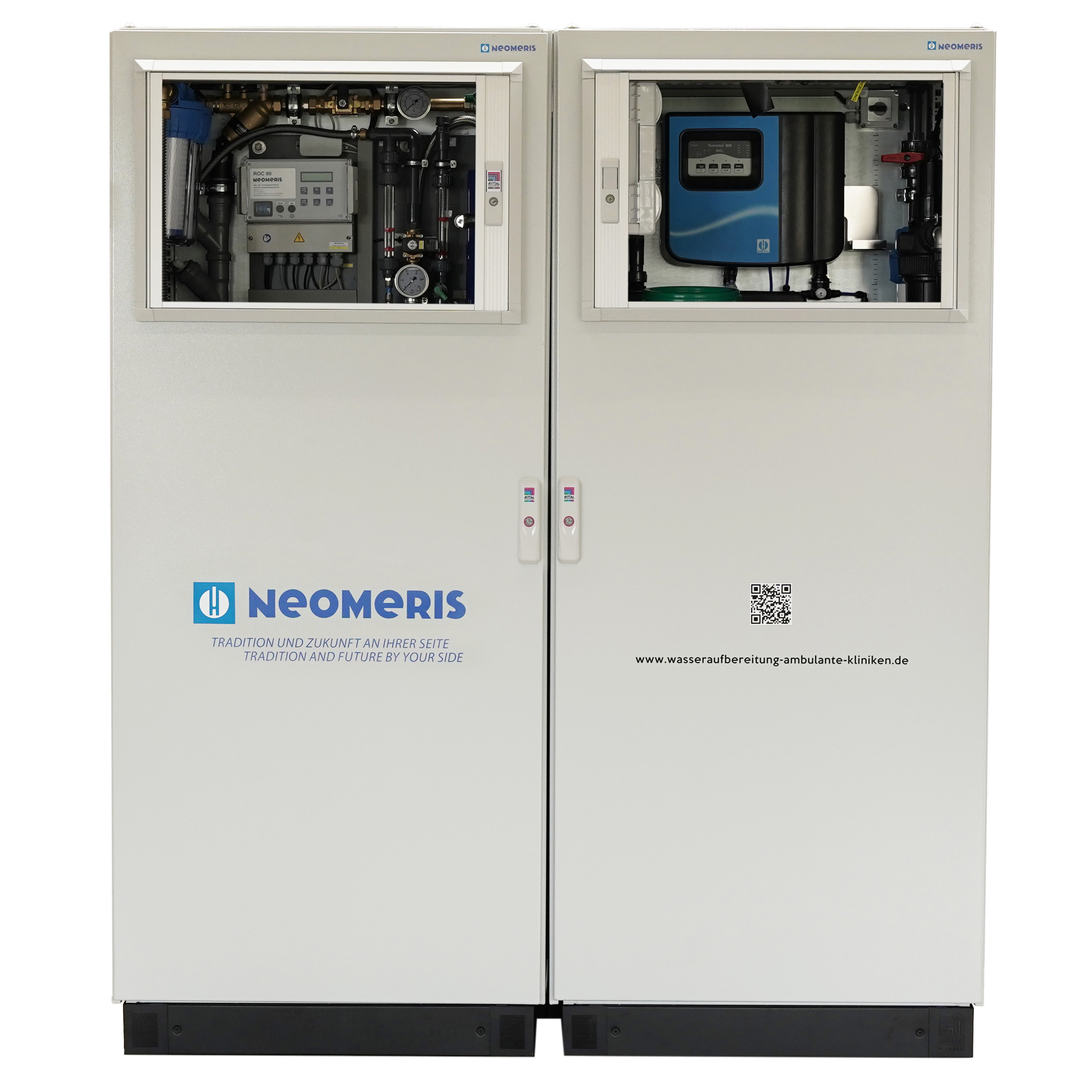

Note: The system shown, consisting of two cabinets, is the fully equipped version of our system. The basic price is therefore supplemented by the selected options.The modular water treatment system was developed especially for the outpatient care sector. While retaining the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the quantities required in different outpatient centres, as well as to the initial water quality including any treatment steps on the part of the suppliers. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the treatment processes of the supplier.PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in the outpatient care sector. This includes different degrees of water hardness, quantities required in outpatient centres, the initial water quality and the treatment steps. Optimal water treatment is relevant for reliable availability of instruments for operations. In addition, the protection of the instruments and the equipment technology goes hand in hand with this. Furthermore, any damage to the instruments or equipment is always directly related to the issue of patient safety. For the treatment of the water, a pre-filtration, a softening system, a reverse osmosis system with a 100-litre permeate tank including a surge tank and sterile filter as well as a permanent conductivity and silicate monitoring by a Testomat® 808 SiO2 at the blending bed and a recirculation system with integrated UV system and pyrogen filter are used.Waste water discharge via brine lifting unitAs an optional component, the treatment plant can be extended by an integrated wastewater lifting unit, which conveys the produced and collected wastewater into the sewage system. The main wastewater volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.Shut-off via system separatorThe installation of a system separator is mandatory to protect the drinking water network from contamination by treated water or changes in the natural composition of the drinking water fed in due to the technical treatment of the latter. The unit has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems, offering a wide range of solutions for the secure storage and protection of electronic components and equipment. Rittal enclosure systems are available in a range of sizes, designs and configurations, and are suitable for various application areas such as IT infrastructure, industrial automation, power distribution and telecommunications.Rittal's enclosure systems are characterised by high quality, functionality and flexibility. Rittal cabinets are made from high-quality materials and offer a robust design that ensures reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibration and other environmental influences. Rittal enclosure systems are modular, which means they can be adapted to specific requirements and available space. They offer a wide range of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. Rittal's enclosure systems offer various security features such as lockable doors, security locks and access control systems to prevent unauthorised access to equipment and ensure data security. Only a minimum floor space of 1.60m x 1m is required to install the HeylNeomeris modular water treatment system. It consists of 2 cabinets, each 80cm wide and 60cm deep. It is possible to work with double doors and thus, due to the depth of 60 cm and a double door with a dimension of 40 cm, an area of 1 m in the depth of the room results.The cabinets used are made of sturdy sheet steel modules and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 Silicate Measuring DeviceA Testomat®808 SiO2 silicate is used for permanent silicate monitoring. The Testomat®808 SiO2 is a measuring instrument that is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. Here, the silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue colour whose intensity is proportional to the silicate content. The measuring device records the colour intensity by means of an optical sensor and converts it into a measured value that represents the silicate content of the water. The Testomat®808 SiO2 is housed in a compact casing that includes a user interface, display and control elements as well as connections for water samples and drainage.The use of the Testomat 808®SiO2 ensures reliable compliance with the limit value for SiO2 of 0.4 mg/l recommended by the DGSV and AKI. In the event of a limit value being exceeded, it is possible to transmit this to the optionally available NeoTecMaster® or to directly activate an optical warning element. Continuous monitoring of the silicate content is necessary to effectively prevent any deposits and subsequent damage to the device technology and instruments.By using the Testomat®808 SiO2, companies can continuously monitor the silicate content and take appropriate measures to prevent deposits if necessary.Optional components of the system UV Disinfection MiniUV disinfection is used in water treatment to inactivate the water from any microorganisms such as bacteria, viruses and protozoa. UV stands for ultraviolet radiation, which is produced by special UV lamps. The principle of UV disinfection is based on inactivating the DNA or RNA of the microorganisms, preventing them from reproducing and causing disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be killed. Unlike other disinfection methods such as chlorination or ozonation, UV disinfection does not require the addition of chemicals to the water. It produces no unwanted by-products and does not alter the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of the disinfection remains constant. Since no chemicals are used in UV disinfection, there are no harmful residues in the water or the environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method of killing microorganisms but is not used to remove pollutants, particles or chemical contaminants in the water.The optional UV system is integrated into the plant's continuously operating recirculation system.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. Pyrogens are substances that can cause an immunological reaction in the body, especially an increase in body temperature. They are usually endotoxins released by bacteria such as Escherichia coli (E. coli). The pyrogen filter consists of a filter element that has a very fine pore size, typically in the range of 0.1 to 0.2 microns. This allows the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. In the modular water treatment system, the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection.After the water has been cleaned of particles and microorganisms, it is passed through the pyrogen filter to remove possible pyrogens. Pyrogen filters are particularly important in industries where the absence of pyrogens in the water is crucial, for example in the ambulatory care sector to ensure optimal quality of instrumentation for surgery. Overall, pyrogen filters play an important role in water treatment to ensure the quality and purity of water and to minimise potential exposure to pyrogenic substances.The optional pyrogen filter is located directly behind the UV unit and can thus also be integrated into the unit's continuously operating recirculation system.Lifting systemThe lifting system is used for the reliable discharge of the wastewater volumes from the individual process steps. The main volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.The use of a lifting unit is recommended if the wastewater pipes cannot be connected to a ground-level wastewater connection.NeoTecMaster® 5 inch with housingData acquisition as well as its visualisation and processing are only some of the relevant topics in the environment of modern water treatment. The networking of different measuring systems and their integration into the process automation is an elementary component. The NeoTecMaster® was developed specifically for this task and is a multi-parameter system that is open to all manufacturers.Data recording and visualisation of the NeoTecMasterThe visualisation of the multicontroller is done via trend graphs. All set parameters can be selected and deselected. All recorded data is saved on a USB stick and can also be accessed online within the company network. You can monitor and visualise up to 8 parameters via the shift key.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 protection class housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment system, also for systems in outpatient clinics.Viewing windowRittal enclosures are fitted with viewing windows, which provide an overview of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable visual inspection of the equipment located in the enclosure without the need to open the enclosure. This facilitates monitoring, maintenance and troubleshooting of components without compromising enclosure integrity. Viewing windows are usually made of a transparent material such as glass.Notes: Viewing windows in Rittal enclosures are only available for single-leaf doors. When selecting this option, please note that the required minimum room depth increases from 100 cm to 140 cm.LightingFurthermore, interior lighting with RGB colour tones is optionally available for this design variant. These can be placed independently depending on the equipment of the cabinet systems. Please note that this option is only available for cabinets with a viewing window.Aqua-Stop (solenoid valve shut-off)An Aqua-Stop is a safety mechanism used in water supply systems to stop or restrict the flow of water when a fault or leak occurs. It is usually an automatic closing mechanism that closes the water supply valve to prevent major water damage.A solenoid valve is a type of shut-off valve controlled by the use of an electromagnetic field. In water treatment, a solenoid valve is used to shut off or control the flow of water. The solenoid valve consists of an electromagnetic coil system and a valve mechanism. By applying an electrical voltage to the coil, a magnetic field is generated which influences the valve mechanism. Depending on the application, the solenoid valve can be opened or closed to allow or block the flow of water. In combination, additional safety and control over the water flow can be provided.The Aqua-Stop is located directly as the first element behind the main water connection of the system. The associated solenoid valve is coupled with two sensors, one of which continuously monitors the floor pans of both cabinet systems. The floor pans are an integral part of the cabinet systems. Collecting trayThe floor pans are an optional part of the cabinet systems.

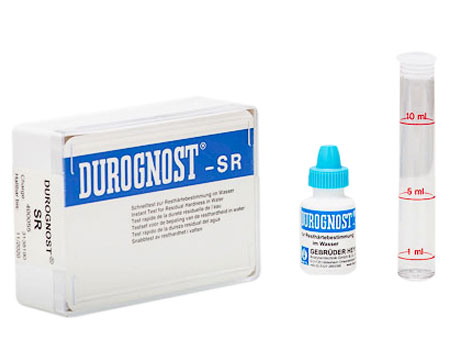

LIMIT VALUE TEST KIT Liquid special indicator in dropper bottle for the monitoring of softened water, set for the limit values of 0.5 and 0.25 °dH (8,9 and 4,47 ppm).  Description Complete with measuring tube and stopper  Analyses: approx. 250 Measuring time: approx. ½ minute

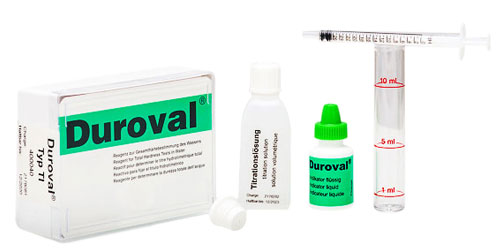

Industrial test kit for the determination of water hardness across all hardness ranges via complexometric titration with a liquid titration agent and a pipette, accurately calibrated in hardness units.   Especially recommendable as initial equipment for water softening installation.   Description Complete with measuring tube, pipette calibrated from 0-30 °dH, special junction stopper, liquid indicator and titration solution. Analyses: approx. 60 (at an average hardness of 15 °dH) Measuring time: approx. 2 minutes Accuracy: 0.5 °dH

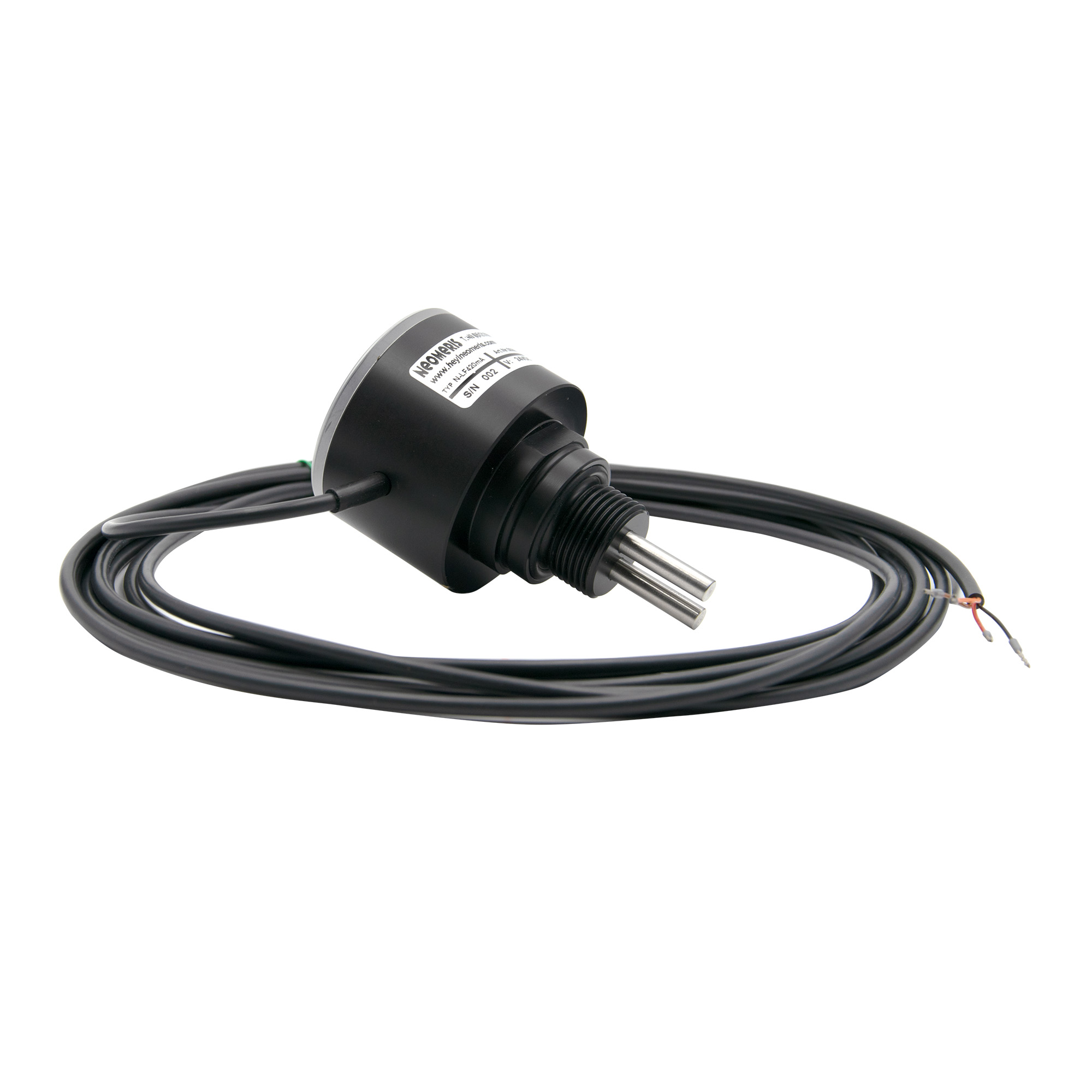

High-quality conductivity meter for conductivity monitoring Our innovative conductivity meter has been specially developed for monitoring conductivity in ultrapure water (demineralised water) and has a 4-20 mA signal output that enables easy integration into higher-level control systems.The measurements are temperature-compensated, which ensures greater accuracy. With a measuring range of 0 to 2 µS/cm, our device is particularly suitable for monitoring low conductivities, such as those typically found in mixed-bed ion exchanger cartridges. The limit value is displayed by means of 2 LEDs (green/red) on the top of the device. An acrylic glass cover ensures that the current status is immediately visible. The device has a ¾ screw thread, which can be customised for easy and safe installation. There is also the option of customisation in terms of the LEDs, including the measuring range and a private label. Our high-quality conductivity meter offers a reliable solution for conductivity monitoring in medical areas to fulfil the guidelines and recommendations of the DGSV. Our measuring device is also particularly suitable for mixed bed cartridge monitoring in the clinical environment. Standard LED configuration (1 green LED, 1 red LED): <0.5 µS/cm = green >0.5 µS/cm to <1.0 µS/cm = green/red flashing >1 µS/cm = red

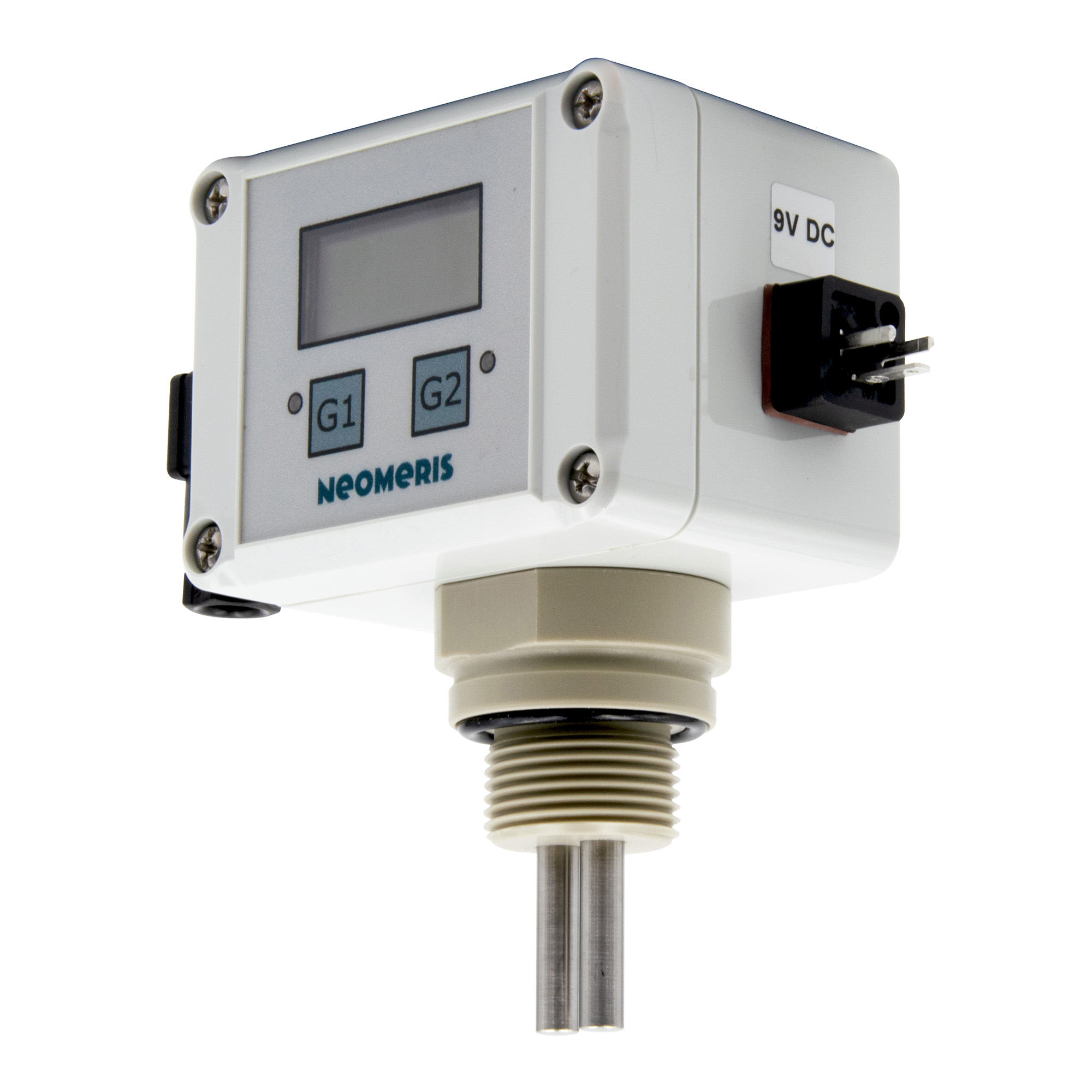

Conductivity meter for conductivity monitoring Our innovative conductivity meter was developed specifically for monitoring the conductivity of aqueous solutions. With a measuring range of 0 to 5 µS/cm, our device is particularly suitable for monitoring low conductivities, which are typically used in the following processes: Mixed bed cartridges demineralisation Reverse osmosis (2-stage) EDI (electrode ionisation) The limit values are indicated by means of digital displays with 2 preset limit values and 2 LEDs (green/red) for visualisation. The device has a screw-in thread of ¾", which can be customised for easy and safe installation. There is also the option of customised versions with regard to the measuring range and a private label. Added value  Operation at 9 V DC via supplied plug-in power supply unit  1 potential-free relay with switchable mode of operation of relay control  Limit value display optically by means of LEDs

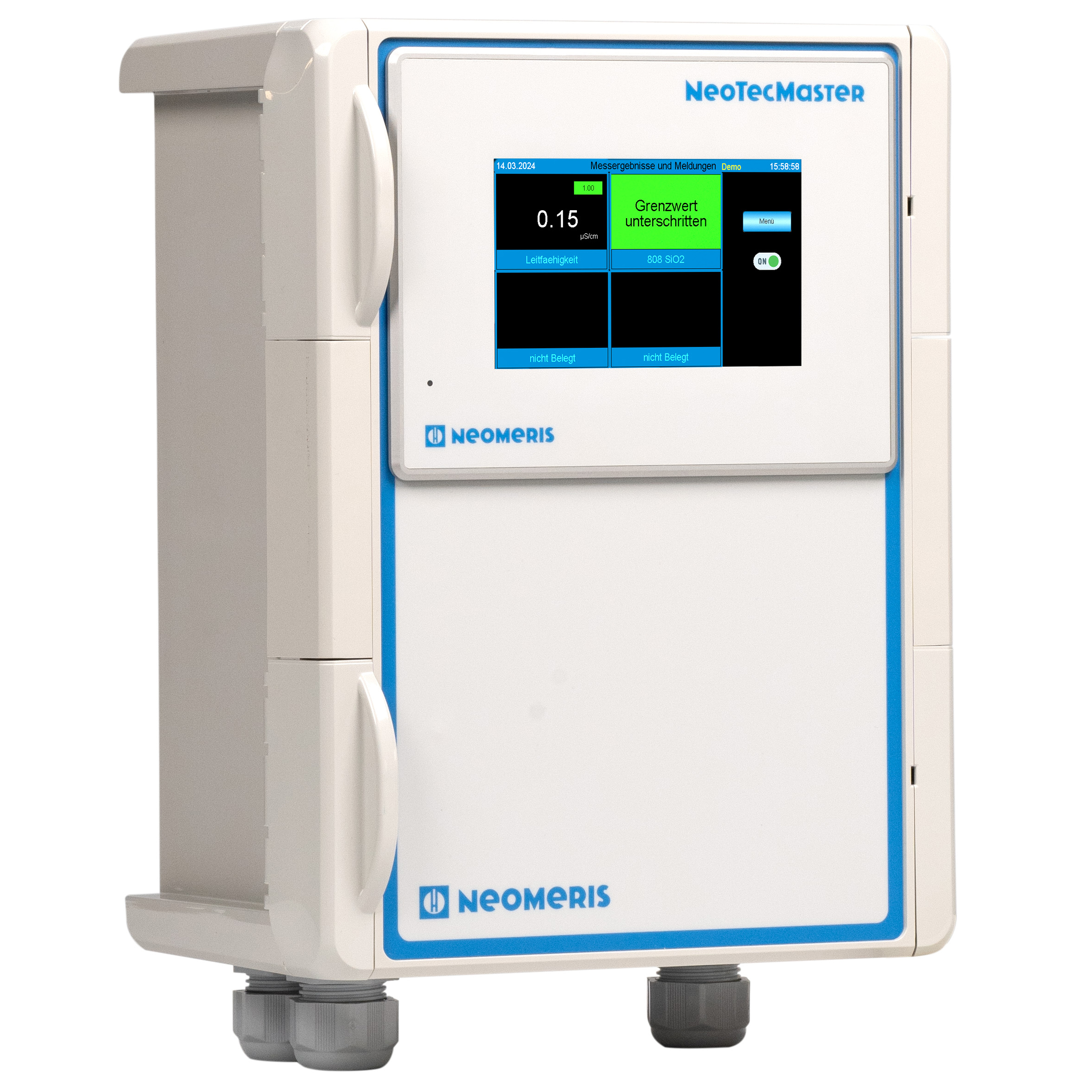

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant Contents: NeoTecMaster® 5 inch - 4 channel system (optionally expandable to 8 channels) with Modbus interface and RS232 input for data communicationNeoTec Slave 4-20mA module (inputs: 8x 20mA)NeoTecMaster® IP66 housing for 5" display, light grey with front foilUSB stick for NeoTecMaster® 8GBInstallation of NeoTecMaster® in housing incl. parameterisation and cabling of the NeoTecMaster®Universal power supply 24V/6A DC (100-240V AC) (144 Watt)

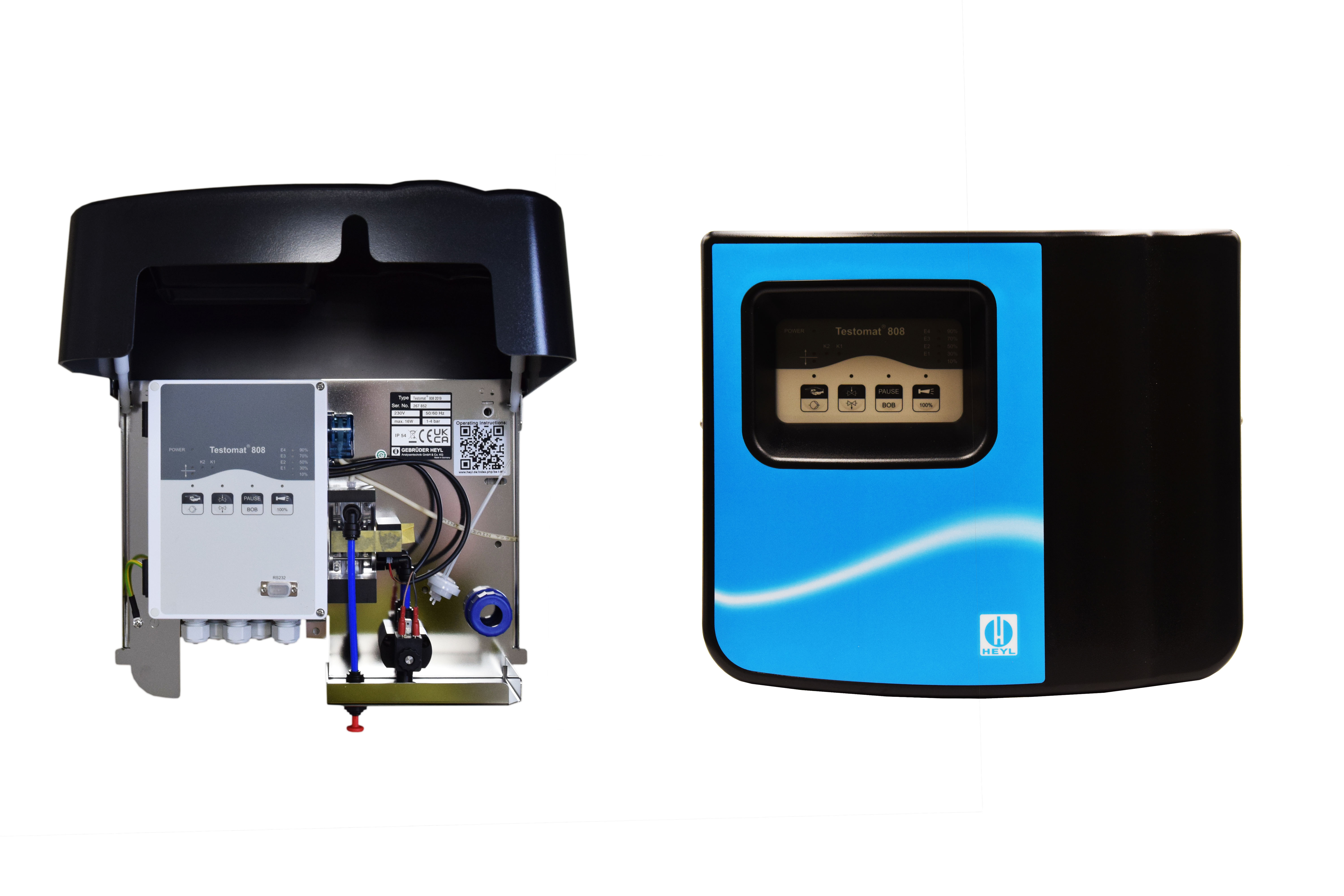

The Testomat® 808 is a compact analyzer for the online measurement of water hardness according to the principle of " limit value monitoring by color change ". The Testomat® style="letter-spacing: 0px;"> 808 is a combination of the latest technologies based upon decades of international Testomat® experience.Applications of continuous residual hardness monitoring are for example: Reverse osmosis plants Boiler feed water supply Soft water for commercial puposes Pure water systems Performance profile:Limit value indication (not exceeded or exceeded: green / red LED) Modern indicator pump system Automatic measuring process with low water consumption Direct error and indicator quantity indication Internal and external flushing of the measuring chamber by manual control Control of an external rinsing valve Three potential-free relays for: External rinsing valve control Limit value evaluation External control and / or alarm processing Safety check for 72 hours operation without supervision Indicator quantities: 100 and 500 ml bottles 4 - 20 mA interface for defined status and error messages RS 232 interface for firmware updates

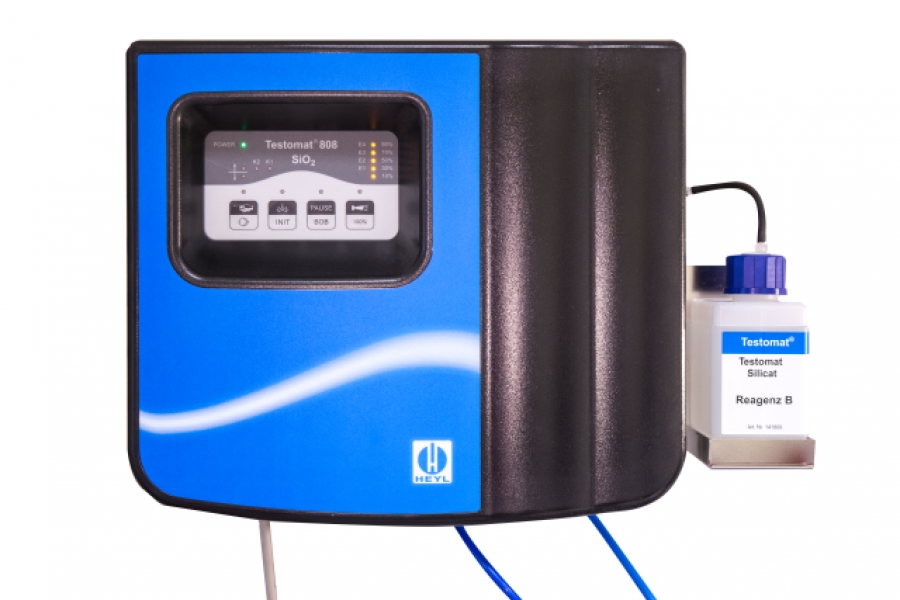

The Testomat® 808 SIO02 is a device that was developed for measuring and monitoring deionised water (fully demineralised water) in medical facilities.  The central importance of silicate monitoring  Silicate measurement using the Testomat® 808 SIO02 is an essential aspect of compliance with a defined limit value. Precise silicate monitoring is particularly important in process water treatment in hospitals in order to prevent deposits on devices and medical devices (MD) and to ensure the effectiveness of the water treatment systems. You can choose between 10 limit values in the range from 0.3 to 1.2 ppm. By regularly monitoring the silicate content and compliance with the limit values, potential problems can be identified at an early stage and suitable measures can be taken to optimise water treatment.

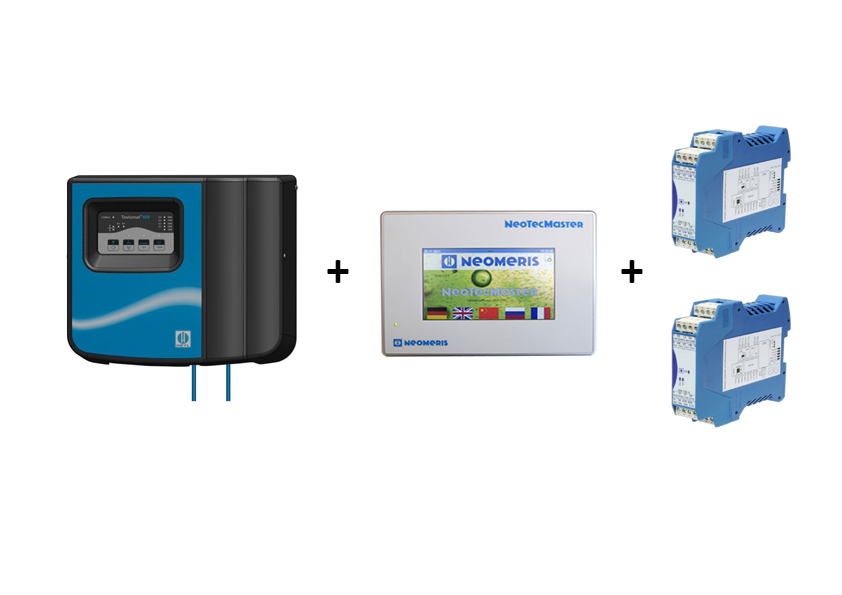

The Testomat® 808 is a compact analyser for online measurement of water hardness according to the principle of "limit value monitoring with colour change" in the measuring range 0.02 - 5 ° dH (0.4 - 89 ppm). Applications of the continuous residual hardness monitoring are e.g.: Reverse osmosis systems, boiler feed water supply Soft water for commercial purposes, ultrapure water systems.  In view of the fact that the Testomat® 808 is suitable for use in multi-parameter systems due to its 4-20mA signal output, we hereby offer you the Testomat® 808 in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price.  The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals. Via the 4-20mA NeoTec slave input module connected to the NeoTecMaster®, the data is transmitted to the NeoTecMaster® and used to display the measured value, the trend and the status messages on the 5-inch screen. In addition, the NeoTecMaster® has an RS232 interface as well as a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments).  The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required. This allows the future realisation of further control concepts in a flexible way.  Two modules which fundamentally extend the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA input module. This allows you to add potential-free relay contacts to the overall system and to integrate and visualise further system technology such as sensors via the 4x 4-20mA input module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, implement simple limit value-related control concepts as well as output measurement value-related messages.  Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® device world, here in connection with the Testomat® 808  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® enclosure  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation)  Available as built-in or surface-mounted variant  Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are the proven functionalities of the Testomat® 808:  Indication of limit value undershoot or overshoot: green / red LED  Modern indicator pump system  Automatic measuring sequence with low water consumption  Direct error and indicator quantity display  Internal and external flushing of the measuring chamber by manual control  Control of an external flush valve  Three potential-free relays for: External flush valve control Limit value evaluation External control and / or alarm processing Safety check for 72-hour operation without supervision  Indicator quantities: 100 and 500 ml bottles  4 - 20 mA interface for defined status and error messages  RS 232 interface for firmware updates  General information Water connection and operating pressure: Depending on unit version: 0.3 - 1 bar / 0.3 x 105 to 4 x 105 Pa 1 - 4 bar / 1 x 105 to 4 x 105 Pa (from 4 to 8 bar, a pressure reducer must be used (special accessory))  Water inlet: opaque hose with 6 mm outer diameter/4 mm inner diameter  Water outlet: hose with 6 mm outer diameter/4 mm inner diameter  Water temperature: 10 to 40 °C From 4 bar, a separately available pressure reducer must be used. Please use only the indicators approved for Testomat® 808! Optional accessories:  NeoTecMaster unit hood

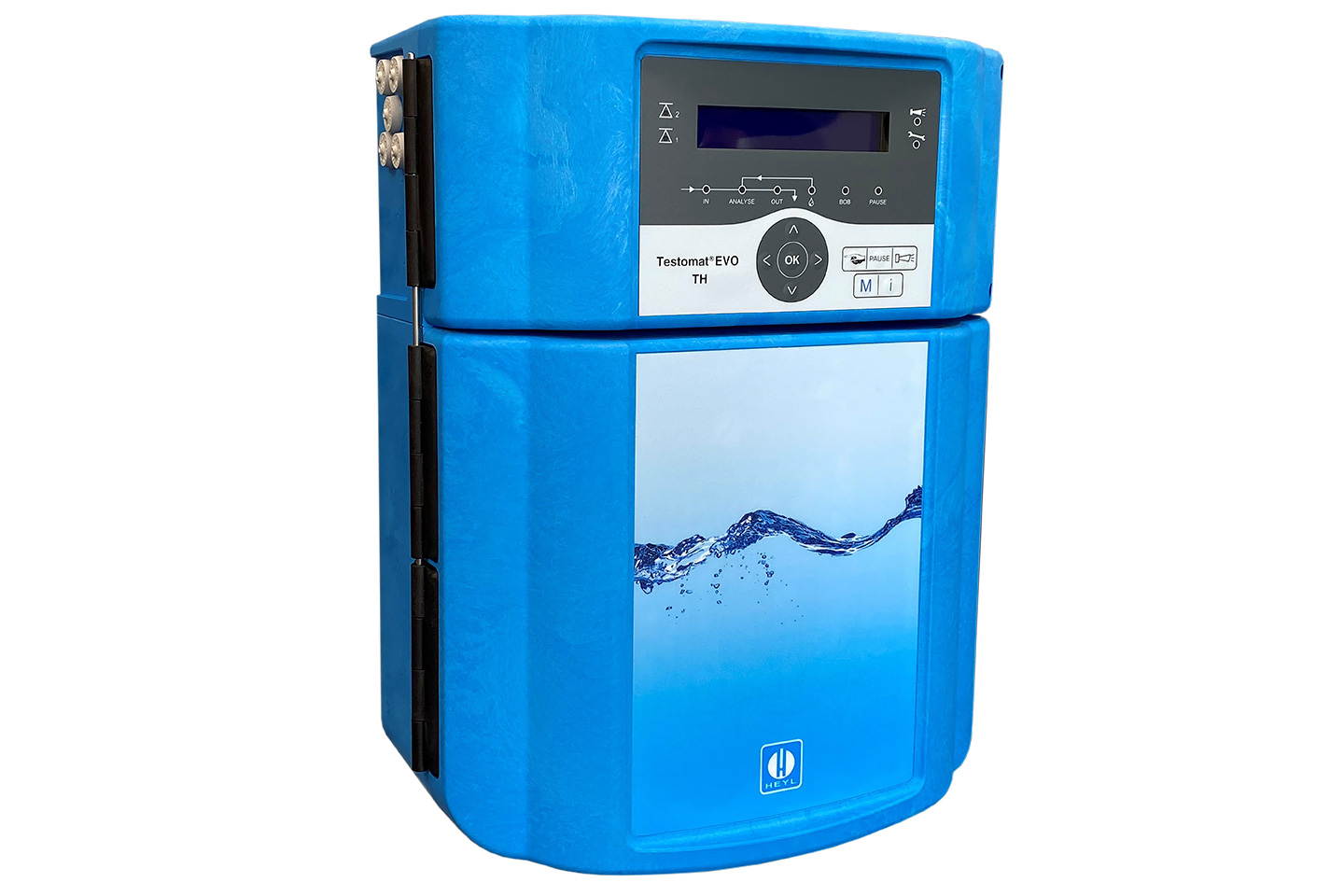

The Testomat® ECO / EVO automatically determines the water hardness by means of titration. The device is suitable for controlling the water quality of water treatment plants, drinking water systems, industrial boilers and for monitoring process water. Approved for boiler houses | component identification no.: TÜV. WÜH. 21-025 | VdTÜV bulletin water monitoring device 100 and UL-TÜV certified (only version with wide-range power supply unit).The Testomat® style="letter-spacing: 0px;"> EVO TH convinces with new functionalities:Optical water detection when filling the measuring chamber BOB operation (operation without constant supervision)Import and export of settings (basic programming) with selectable file nameLogging of measurement data and messages / alarms using an integrated SD or optional SDHC card (2GByte) Firmware update via SD card LCD graphic display Multilingual menu with easy switching (internal programming is retained) Integrated self-test with continuous monitoring External clear / acknowledge input Free programmable password Automatic bleeding of the indicator line Doors can be changed individually Range monitoring (fall below limit value1 / exceed limit value 2) Permitted number of lack of water, freely programmable (for systems with temporarily low water pressure)[#mspacer#]Performance profile:High-precision titration using a piston dosing pump Analogue output 0/4 - 20 mA Serial RS232 interface for transfer of measurement data and messages/alarmsProgrammable hardness unit in ° dH, ° f, ppm CaCO3, mmol / l 2 independent limits with adjustable switching functions as well as switching option in accordance with an adjustable number of negativeanalyzes Analysis initiation: automatic interval operation (0-99 minutes) depending on quantity via contact water meter Indicator quantities: 100 und 500 ml bottles  The Testomat® EVO TH is supplied without a power switch. This is done to comply with the DIN EN 61010-1 safety standard for measuring, control and laboratory equipment. Of course, an external mains switch will be made available to you as a customer for purchase. You can order this from us as a disconnector under article no. 850925, "external cam switch with protection class IP65".

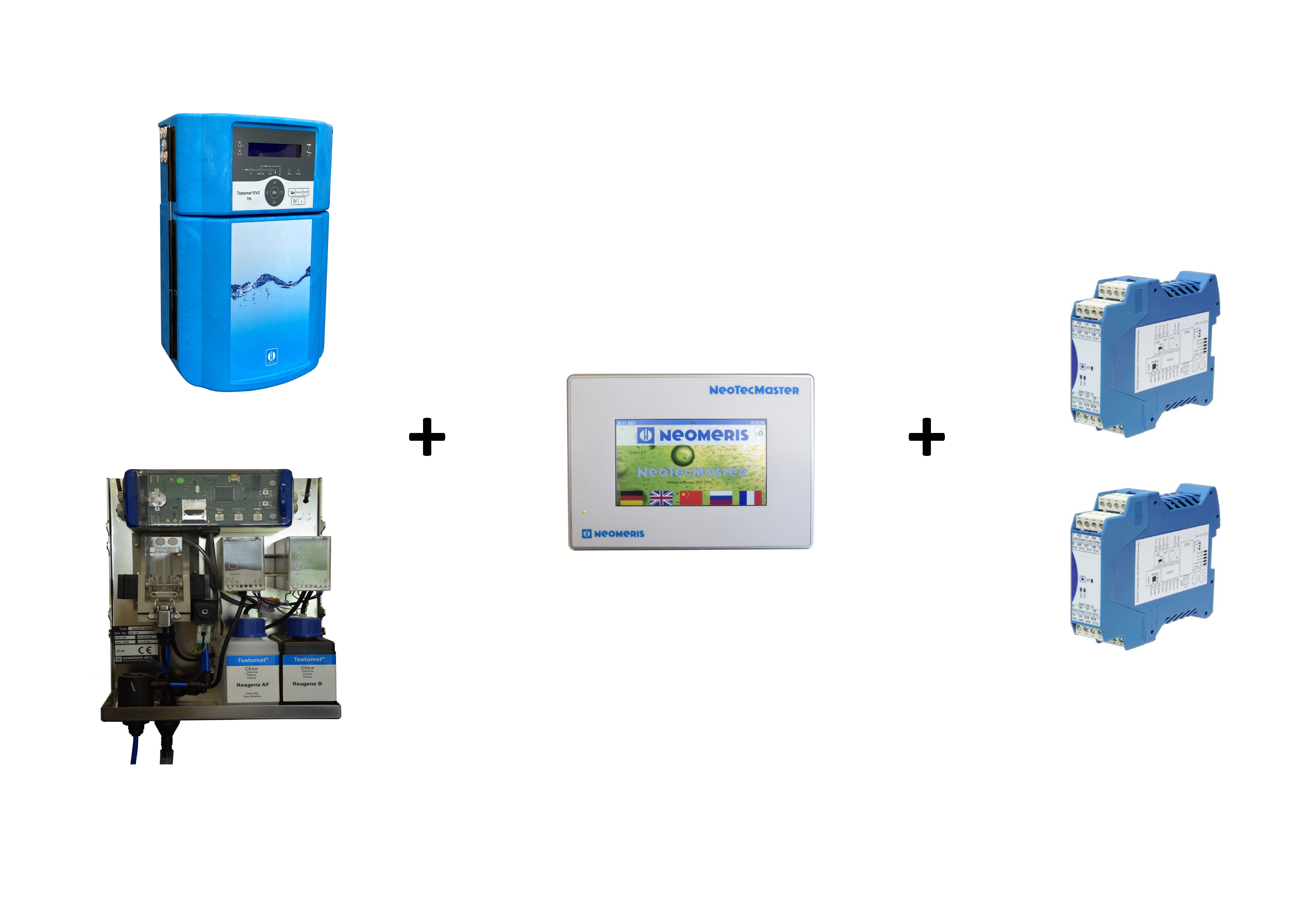

The Testomat® EVO TH automatically determines the water hardness by means of titration. The device is suitable for controlling the water quality of water treatment plants, drinking water systems, industrial boilers and for monitoring process water. On top of that our Testomat® EVO TH is approved for boiler houses | component identification no.: TÜV. WÜH. 21-025 | VdTÜV bulletin water monitoring device 100 and UL-TÜV certified. It is supplemented by the Testomat® LAB CL, a robust wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® EVO TH and the Testomat® LAB CL in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® EVO TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages. Further advantages of the NeoTecMaster:  Simple operation  Integration of the Testomat® world of instruments, here in conjunction with the Testomat® EVO TH and Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® functionalities of both devices:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Performance profil Testomat® EVO TH:  High-precision titration by means of piston metering pump  LCD graphic display Multilingual menu with easy switching (internal programming is retained) External clear / acknowledge input Free programmable password Range monitoring (fall below limit value1 / exceed limit value 2) Permitted number of lack of water, freely programmable (for systems with temporarily low water pressure) Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 100 and 500 ml bottles  Analysis trigger: automatic interval operation (0-99 minutes) depending on quantity via contact water meter Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portoguese Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover

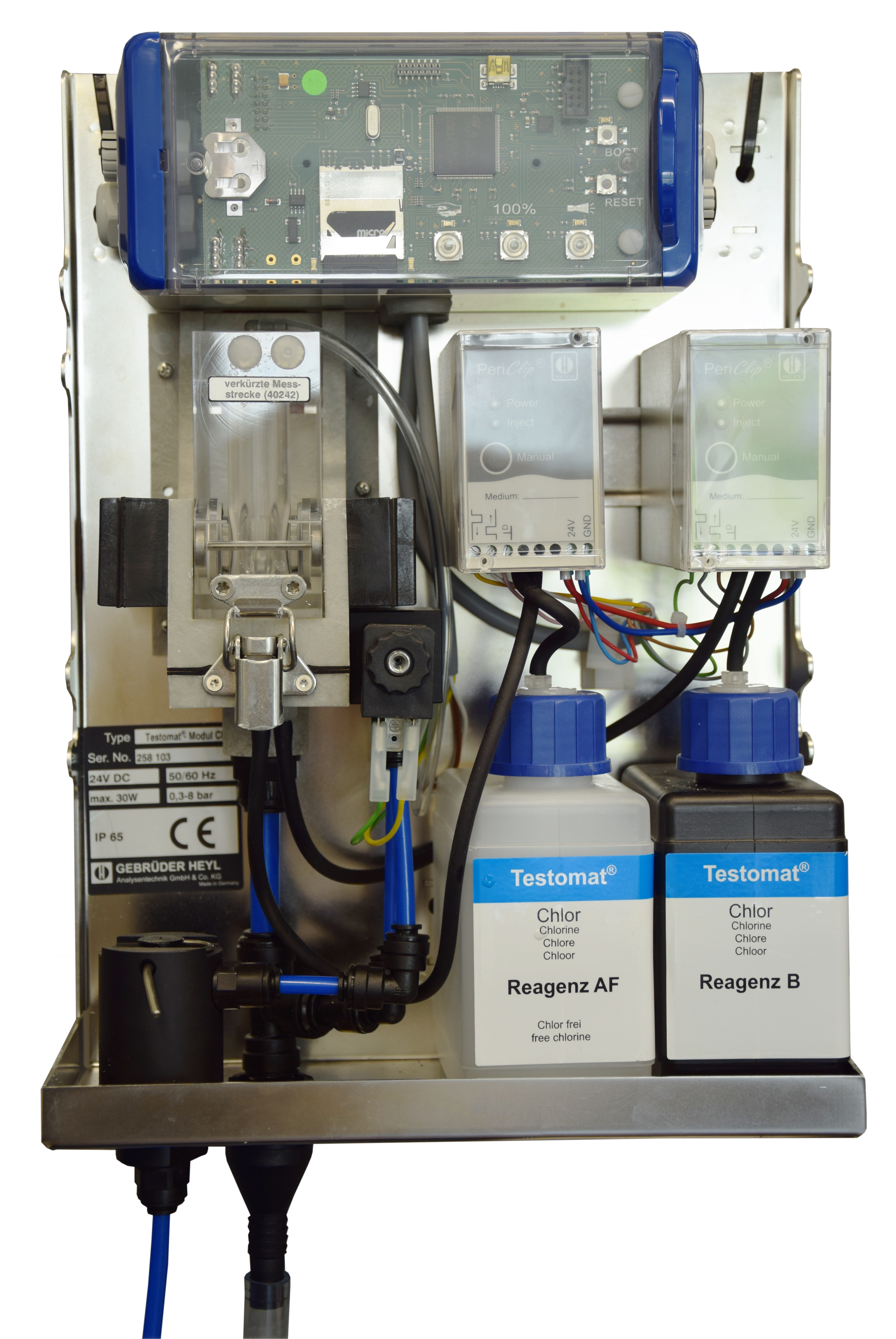

The Testomat® LAB CL and the Testomat® LAB CL-R are robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process.Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time).Please note that Testomat® LAB CL and Testomat® LAB CL-R are developed for use in multi-parameter concepts or for integration into an existing higher-level controlconcept.In addition to the 4-20 mA output for the transmission of the measured values, this series has an RS232 interface for the transmission of the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format in a structured way and can be used for detailed observations at any time.The Testomat® LAB CL and CL-R convinces with new functionalities:Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, Dutch, PortugueseFirmware update via SD card compact design optimized water detection based on an optical measuring method [#dspacer#][#dspacer#]optimized reagent set for total chlorine measurement (reduction from three to tow reagents for total chlorine)Integrated self-test with continuous monitoring Automatic venting of the indicator line Tried and tested performance profile: High-precision peristaltic pumpsReliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorineOptimised reagent bottles: Filling quantities adjusted so that both bottles are used up at the same timeAdditional functions of the CL-R version: Parameterisation and readout of the unit parameters via the RS232 interfaceAnalysis triggering:Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start

The Testomat® LAB CL is a robust wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB CL in combination with the NeoTecMaster® Multi Channel Controller, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input, in this case the RS232 interface, is used by the Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. Two modules that fundamentally expand the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA output module. This allows you to add potential-free relay contacts to the overall system and to realise linear or inverted dosing processes via the 4x 4-20mA output module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, also implement simple limit value-related control concepts, as well as output measurement value-related messages. Via the 4-20mA output module, you can also forward the measured values to a higher-level controller as desired.  Further advantages of the NeoTecMaster:  Simple operation  Integration of the Testomat® world of instruments, here in conjunction with the Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities: Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch, Portuguese Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover

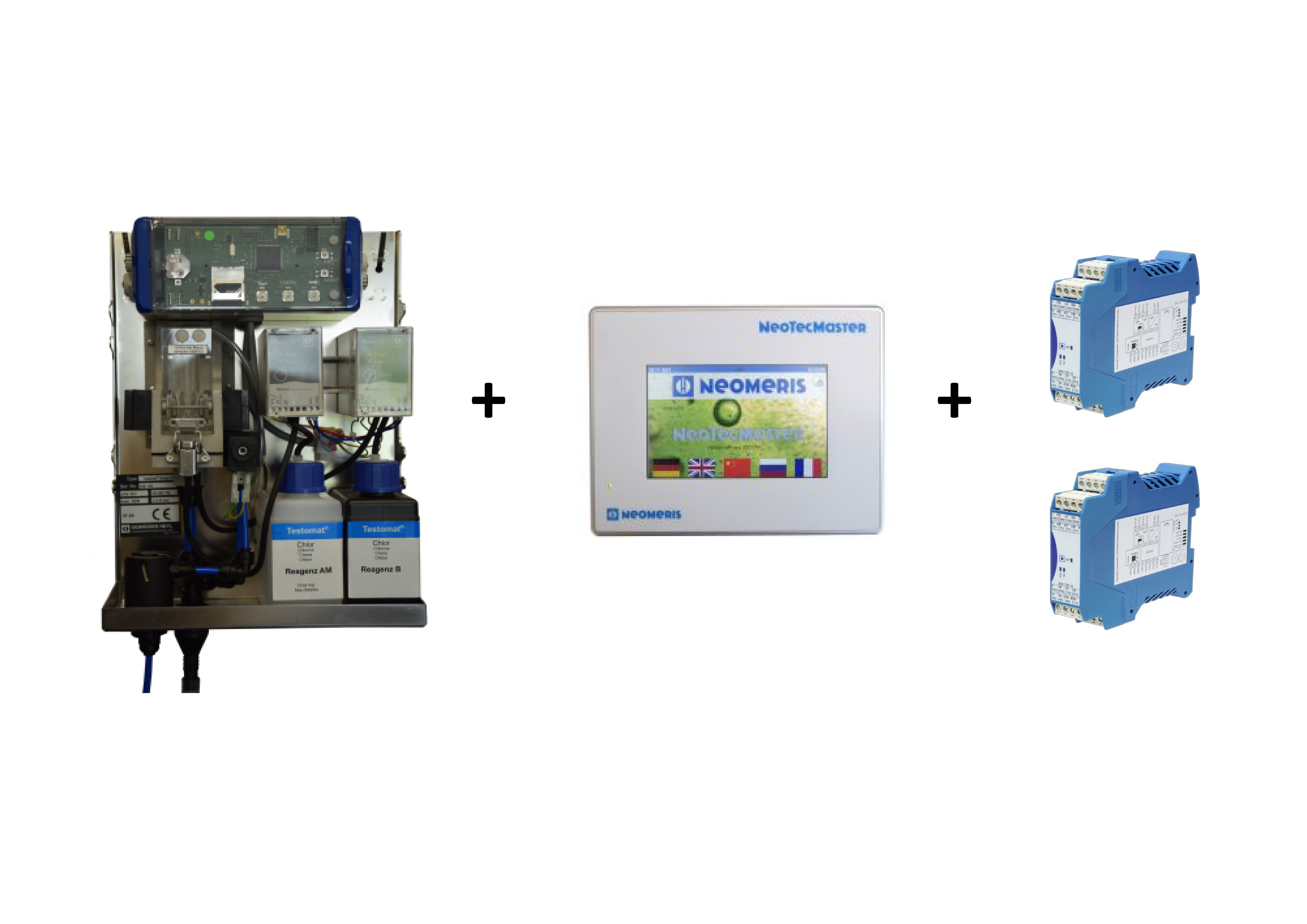

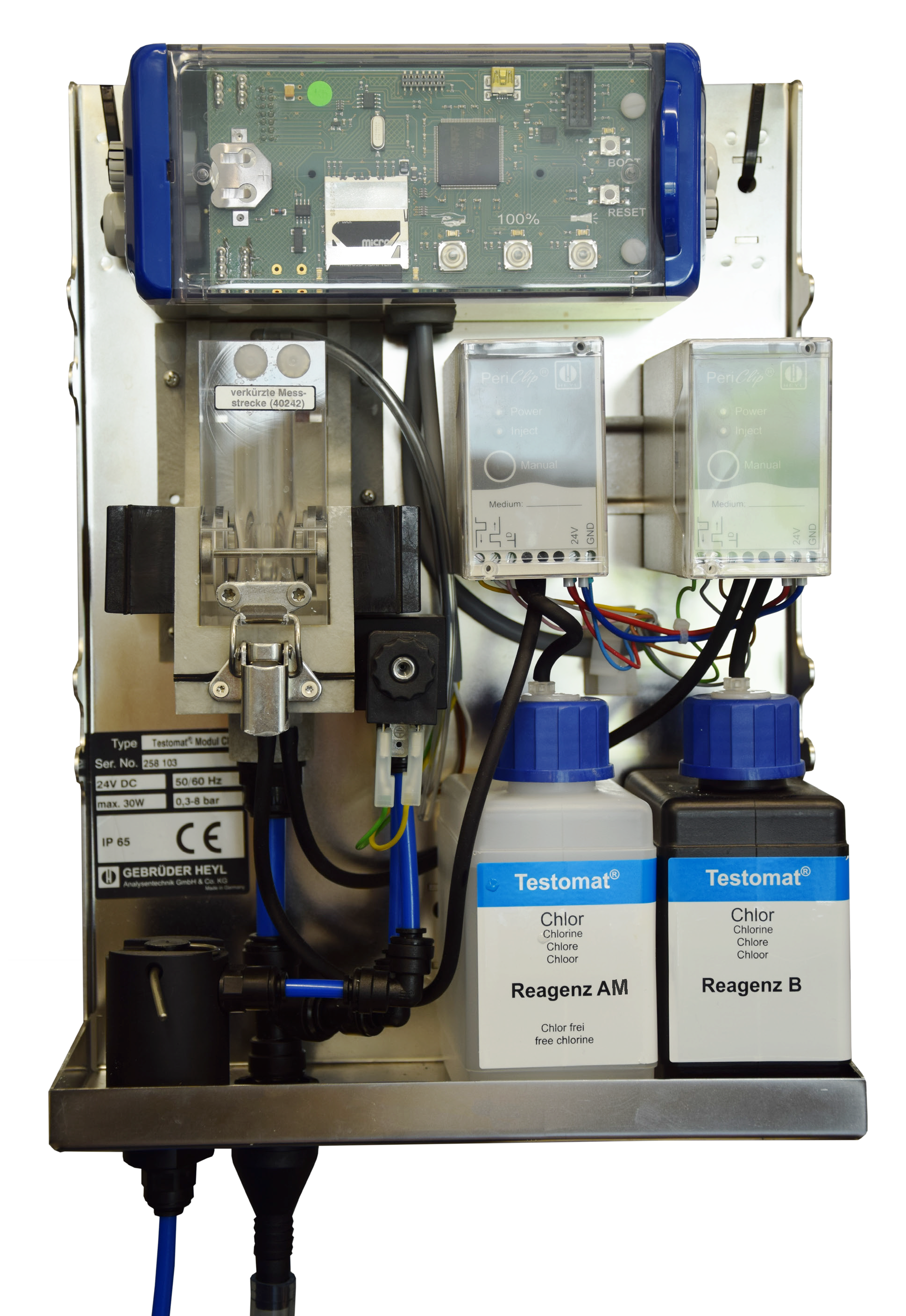

The Testomat® LAB Monochloramine NH2CL and the Testomat® LAB Monochloramine NH2CL-R  are online analyzer that photometrically measures the content of monochloramine in process water. The instruments are used for continuous monitoring of process quality, for example in cooling circuits. Another application is the use in the environment of water treatment and drinking water plants, for process monitoring, as well as the monitoring of ther decay behavior in cooling towers after shock chlorination. The measuring range for Monochloramine (NH2CL, calculated as Cl2) is 0 to 5 ppm (resolution 0.1). The instruments operates according to the DPD method based on EN ISO 7393-2. The analysis is performed by adding two reagents. After a reaction time of approx. 60 seconds (dosing and measuring time without rinsing time) the measuring result is available. Please note that the Testomat® Monochloramine NH2CL and NH2CL-R are developed for use in multiparameter systems or for connection to a higher-level control system. In addition to the 4-20 mA output for transmitting the measured values, this series has an RS232 interface for transmitting the measured values and error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format structured and can be used at any time for detailed observations.The Testomat® LAB Monochloramine NH2CL and NH2CL-R convinces with new functionalities:Execution of parameterization by SD card or the "Service Monitor" software via mini-USB (on the device side) to USB 2.0 (for example PC/notebook)Multilingual menu navigation software in German, English, French, DutchFirmware update via SD card compact design optimized water detection based on an optical measuring methodoptimized reagent set for total chlorine measurement (reduction from three to tow reagents for total chlorine)Integrated self-test with continuous monitoring Automatic venting of the indicator line  Additional functions of the NH2CL-R version: Parameterisation and readout of the unit parameters via the RS232 interface Tried and tested performance profile: High-precision peristaltic pumpsReliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm outputAnalysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start

The Testomat® LAB Monochloramine (NH2CL) is an online analyser that photometrically measures the content of monochloramine in process water and is used for continuous monitoring of process quality, for example in cooling circuits. Another area of application is the use in the environment of water treatment and drinking water plants, for process monitoring, as well as monitoring the decay behaviour in cooling towers after shock chlorination. The measuring range for monochloramine (NH2CL, calculated as Cl2) is 0 to 5 ppm (resolution 0.1). The instrument works according to the DPD method based on EN ISO 7393-2 and the analysis is carried out by adding two reagents. After a reaction time of approx. 60 seconds (dosing and measuring time without rinsing time) the measuring result is available.  For the transmission of the measured values, in addition to the 4-20mA signal output, an RS232 interface is available for the transmission of the measured values as well as error & status messages. Furthermore, all data are continuously recorded on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format and can be used for detailed observations at any time.  In view of the fact that the Testomat® LAB Monochloramine was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you the Testomat® LAB Monochloramine in conjunction with the NeoTecMaster® Multicontroller, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® Multicontroller included in this package enables the processing of up to four measurement signals in this version. One signal input on the NeoTecMaster®, in this case the RS232 interface, is used by Testomat® LAB Monochloramine to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required. This allows the future realisation of further control concepts in a flexible way. Two modules which fundamentally extend the range of functions and are already included in the scope of delivery are our NeoTec slave relay module and the 4x 4-20mA output module. This allows you to add potential-free relay contacts to the overall system and to realise linear or inverted dosing processes via the 4x 4-20mA output module. You can freely assign the relay contacts to the incoming measurement signals and thus, for example, also implement simple limit value-related control concepts, as well as output measurement value-related messages. Via the 4-20mA output module, you can also forward the measured values to a higher-level controller as desired. Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in connection with the Testomat® LAB Monochloramine  Integration into the existing control cabinet, alternatively we offer you our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation)  Available as built-in or surface-mounted variant  Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Integrated self-test with continuous monitoring  Automatic venting of the indicator line Performance profil Testomat® LAB Monochloramine:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch Compact design  Common alarm output Optimised reagents: Only 2 reagents for the determination of monochloramine (NH2CL) Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly Analysis triggering: Automatic interval operation (interval pause adjustable from 10-60 minutes) Measuring phase mode (start impulse triggers a sequence of analyses for a period of 10 minutes to 12 hours) External analysis input (start/stop) Hand start Optional accessories available:  OLED display for Testomat® LAB Protective cover to increase the IP protection class of the Testomat® LAB NeoTecMaster instrument cover

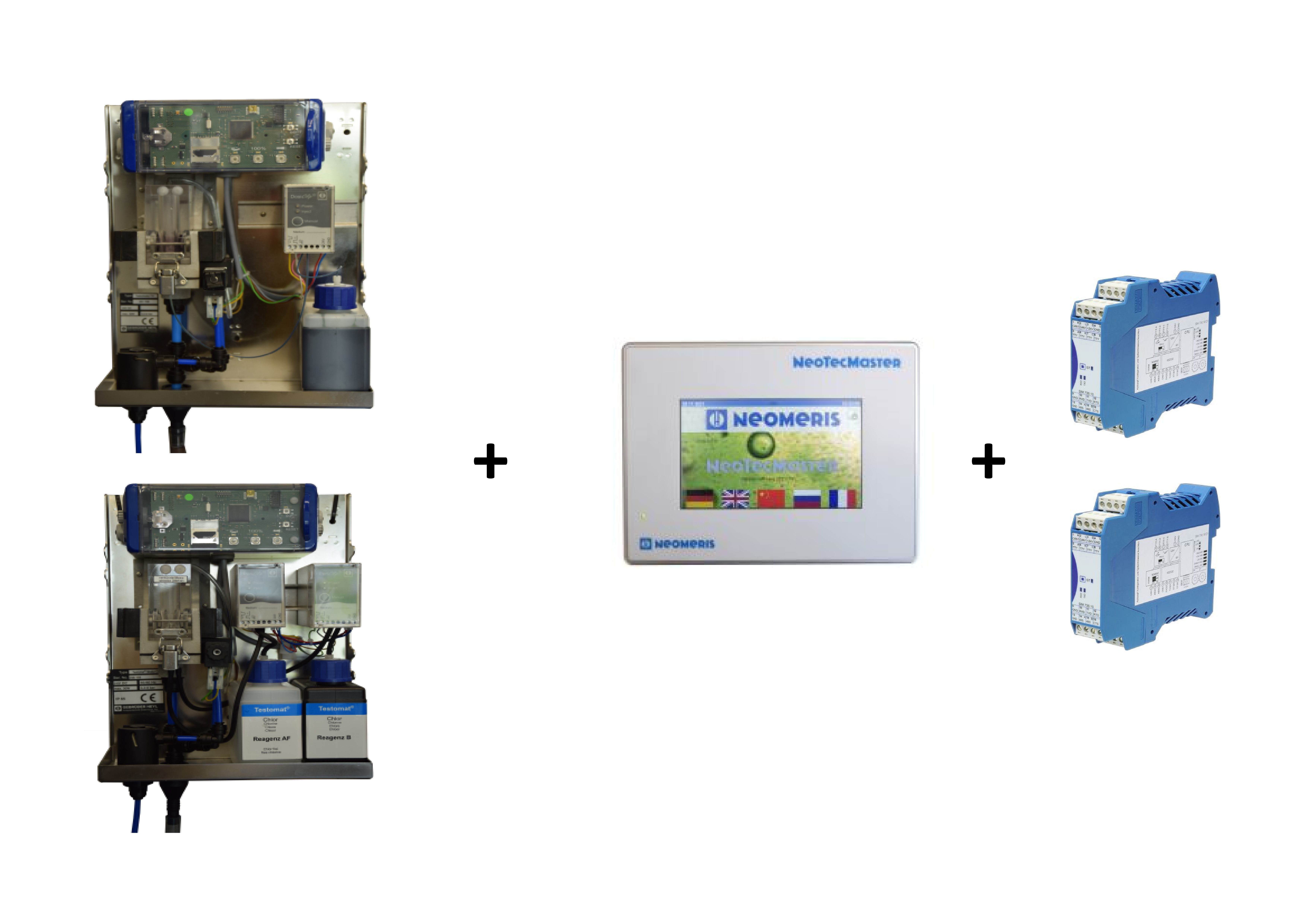

The Testomat® LAB TH determines the water hardness (residual total hardness) fully automatically by use of titration and has been developed for monitoring the water quality of water treatment plants, drinking water plants, industrial boilers and for monitoring process water and the Testomat® LAB CL is a robust, wet chemical online measuring converter to measure the concentration of total chlorine or free chlorine in the measuring range 0 - 5 mg/l. The instrument is suitable for controlling the water quality of water treatment plants, drinking water plants, process water monitoring and for monitoring the chlorine concentration in the cooling tower process. Instrument operation is based on the DPD method according to EN ISO 7393-2. The analysis is carried out through the addition of two reagents and the measurement result is obtained after a reaction time of approx. 60 seconds (pure measurement time without flush time). In view of the fact that the Testomat® LAB TH and Testomat® LAB CL was developed for use in multi-parameter systems or for connection to a higher-level control system, we hereby offer you both Testomat® LAB analysis devices in combination with the NeoTecMaster®, which was specially developed by our company, as a package solution at a preferential price. The 4-channel NeoTecMaster® multi-parameter controller included in this package enables the processing of up to four measurement signals in this version. A signal input on the NeoTecMaster® , in this case the RS232 interface and one additional RS232 interface on the included NeoTec Slave module , are used by Testomat® LAB TH and Testomat® LAB CL to display the measured value, the trend and the status messages on the 5 inch screen. In addition to the on board RS232 interface, the NeoTecMaster® also has a Modbus RTU input, which you can use freely after brief technical consultation with us. (Pre-check whether your existing measurement technology to be integrated requires adjustments). The NeoTecMaster® can be systematically supplemented with further optional NeoTec modules (function / signal converter modules) as required, thus enabling the future realisation of further control concepts in a flexible manner. A module that fundamentally expands the range of functions and is already included in the scope of delivery is our NeoTec slave relay module with which you can add potential-free relay contacts to the overall system. You can freely assign these to the incoming measurement signals and thus, for example, implement limit value-related control concepts, as well as output measurement-related messages.  Further advantages of the NeoTecMaster:  Simple operation Integration of the Testomat® world of instruments, here in conjunction with the Testomat® LAB TH and Testomat® LAB CL  Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housing  Modular range of functions can be extended by NeoTec slave and signal converter modules (measurement, control, regulation) Available as built-in or surface-mounted variant Structured continuous data recording on the integrated SD card or optionally available SDHC card (2Gbyte) as a file in CSV format  In addition, there are proven Testomat® LAB functionalities:  Optimised water detection based on an optical measuring method  RS232 interface for transmission of measured values and error messages  Import and export of settings (basic programming)  Logging of measurement data and messages/alarms via integrated SD card or optionally usable SDHC card (2GByte)  Firmware update via SD card  Execution of parameterisation by means of SD card or "Service Monitor" software via mini-USB (on the unit side) to USB 2.0 (e.g. PC/notebook)  Multilingual software menu in German, English, French, Dutch; Portuguese Integrated self-test with continuous monitoring  Automatic venting of the indicator line  Compact design  Performance profil Testomat® LAB TH:  High-precision titration by means of piston metering pump  Reliable and low-maintenance operation  Minimal indicator and water consumption  Analogue output 4 - 20 mA for transmission of measured values  Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l  Collective alarm output  Indicator quantities: 500 ml bottles  Analysis trigger:  - Automatic interval operation (interval pause adjustable from 0-255 minutes)  - External analysis input (start/stop)  - Manual start  Performance profil Testomat® LAB CL:  High-precision peristaltic pumps Reliable and low-maintenance operation Minimal reagent and water consumption Analog output 4 - 20 mA for transmission of measured values RS232 interface for transmission of measured values & fault messages Common alarm output Optimised reagents: Only 2 reagents for the determination of total chlorine Optimised reagent set: filling quantities are coordinated so that the reagent set is used up almost evenly. Analysis trigger: Automatic interval operation (interval pause adjustable from 0-255 minutes) External analysis input (start/stop) Manual start  Optional accessories available:  OLED display  Protective cover to increase the IP protection class of the Testomat® LAB devices  NeoTecMaster instrument cover

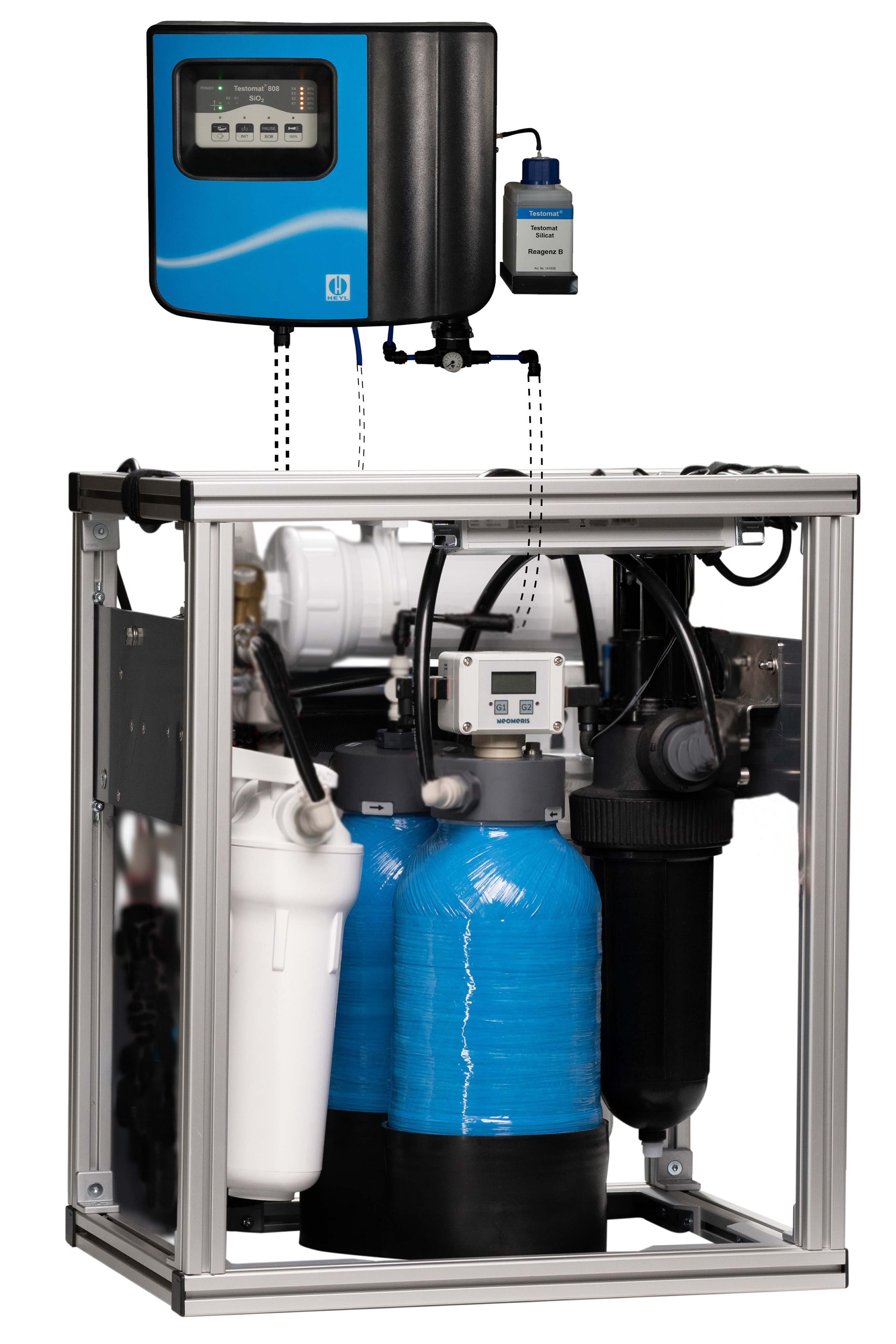

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. Lifting systemThe lifting system is used to reliably remove the wastewater volumes generated from the individual process steps. from the individual process steps. The main volume flows here are the waste water from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate meter are also collected in the lifting unit. wastewater flows from the silicate meter, the system separator and the rinse water rinsing water, which is produced when the input filters (in particular activated carbon filters) is also collected. Collection trays Optional components of the system: NeoTecMaster® 5 inch with housingViewing windowLightingAqua-Stop (solenoid valve shut-off)

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. Lifting systemThe lifting system is used to reliably remove the wastewater volumes generated from the individual process steps. from the individual process steps. The main volume flows here are the waste water from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate meter are also collected in the lifting unit. wastewater flows from the silicate meter, the system separator and the rinse water rinsing water, which is produced when the input filters (in particular activated carbon filters) NeoTecMaster® 5 inch with housingData acquisition and its visualization and processing are just some of the relevant topics in the environment of a modern some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system.The data recording and visualization of the NeoTecMaster®The visualization of the multicontroller takes place via trend graphs. All configured parameters can be selected and deselected. All recorded data is saved on a USB stick and is also available online can also be accessed online within the company network. You can monitor and visualize up to 8 parameters via the toggle button.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment plant, including water treatment system, even for systems in outpatient clinics. Collection trayOptional components of the system: Viewing windowLightingAqua-Stop (solenoid valve shut-off)

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate continuously monitor the silicate content and, if necessary, take appropriate measures to prevent deposits. Lifting systemThe lifting system is used to reliably discharge the wastewater volumes from the individual process steps. The main volume flows here are the wastewater from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate measuring device, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed are also collected in the lifting unit. Optional components of the systemUV disinfection MiniPyrogen filterNeoTecMaster® 5 inch with housingViewing windowLightingAqua-Stop (solenoid valve shut-off)Collection tray

Note: The system shown, consisting of two cabinets, is the fully equipped version of our system. The basic price is therefore supplemented by the selected options.The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Wastewater discharge via brine lifting unitAs an optional component, the treatment plant can be extended by an integrated wastewater lifting unit. integrated wastewater lifting unit, which discharges the generated and and collected wastewater into the sewer system. The main wastewater volume flows are the wastewater from the regeneration of the of the softening plant and the concentrate from the reverse osmosis should be mentioned. The discontinuously occurring wastewater flows from the wastewater flows from the silicate meter, the system separator and the rinsing water that is produced when the input filters (in particular Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. NeoTecMaster® 5 inch with housingData acquisition and its visualization and processing are just some of the relevant topics in the environment of a modern some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system.The data recording and visualization of the NeoTecMaster®The visualization of the multicontroller takes place via trend graphs. All configured parameters can be selected and deselected. All recorded data is saved on a USB stick and is also available online can also be accessed online within the company network. You can monitor and visualize up to 8 parameters via the toggle button.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment plant, including water treatment system, even for systems in outpatient clinics.Viewing windowViewing windows are installed in the Rittal enclosures, which provide an overview of the measurement technology. of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable a visual inspection of the of the devices in the enclosure without having to open the enclosure. having to be opened. This facilitates the monitoring, maintenance and troubleshooting of components without compromising the integrity of the is compromised. The viewing windows are usually made of a transparent transparent material such as glass.Notes: Viewing windows in the Rittal enclosures are only available for single-leaf doors. When selecting this option, please ensure that the required minimum room depth increases from increases from 100 cm to 140 cm. Aqua-Stop (solenoid valve shut-off)An Aqua-Stop is a safety mechanism used in water supply systems to stop the flow of water. used in water supply systems to stop or limit the flow of water limit the flow of water if a malfunction or leak occurs. It is It is usually an automatic closing mechanism that closes the water water supply valve to prevent major water damage.A solenoid valve is a type of shut-off valve that is controlled by the use of an electromagnetic field. controlled by the use of an electromagnetic field. In water treatment a solenoid valve is used to shut off or regulate the flow of water. used. The solenoid valve consists of an electromagnetic coil system and a valve mechanism. By applying an voltage to the coil generates a magnetic field that influences the valve mechanism. influences the valve mechanism. Depending on the application, the solenoid valve can opened or closed to allow or block the flow of water. or block it. In combination, additional safety and control over the control over the water flow can be guaranteed.The Aqua-Stop is located directly behind the main water connection of the system as the first element. water connection of the system. The associated solenoid valve is coupled with two sensors, one of which continuously monitors the base trays of each of the two cabinet systems is continuously monitored. Collection trayOptional components of the system:Lighting
