Note: The system shown, consisting of two cabinets, is the fully equipped version of our system. The basic price is therefore supplemented by the selected options.The modular water treatment system was developed especially for the outpatient care sector. While retaining the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the quantities required in different outpatient centres, as well as to the initial water quality including any treatment steps on the part of the suppliers. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the treatment processes of the supplier.PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in the outpatient care sector. This includes different degrees of water hardness, quantities required in outpatient centres, the initial water quality and the treatment steps. Optimal water treatment is relevant for reliable availability of instruments for operations. In addition, the protection of the instruments and the equipment technology goes hand in hand with this. Furthermore, any damage to the instruments or equipment is always directly related to the issue of patient safety. For the treatment of the water, a pre-filtration, a softening system, a reverse osmosis system with a 100-litre permeate tank including a surge tank and sterile filter as well as a permanent conductivity and silicate monitoring by a Testomat® 808 SiO2 at the blending bed and a recirculation system with integrated UV system and pyrogen filter are used.Waste water discharge via brine lifting unitAs an optional component, the treatment plant can be extended by an integrated wastewater lifting unit, which conveys the produced and collected wastewater into the sewage system. The main wastewater volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.Shut-off via system separatorThe installation of a system separator is mandatory to protect the drinking water network from contamination by treated water or changes in the natural composition of the drinking water fed in due to the technical treatment of the latter. The unit has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems, offering a wide range of solutions for the secure storage and protection of electronic components and equipment. Rittal enclosure systems are available in a range of sizes, designs and configurations, and are suitable for various application areas such as IT infrastructure, industrial automation, power distribution and telecommunications.Rittal's enclosure systems are characterised by high quality, functionality and flexibility. Rittal cabinets are made from high-quality materials and offer a robust design that ensures reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibration and other environmental influences. Rittal enclosure systems are modular, which means they can be adapted to specific requirements and available space. They offer a wide range of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. Rittal's enclosure systems offer various security features such as lockable doors, security locks and access control systems to prevent unauthorised access to equipment and ensure data security. Only a minimum floor space of 1.60m x 1m is required to install the HeylNeomeris modular water treatment system. It consists of 2 cabinets, each 80cm wide and 60cm deep. It is possible to work with double doors and thus, due to the depth of 60 cm and a double door with a dimension of 40 cm, an area of 1 m in the depth of the room results.The cabinets used are made of sturdy sheet steel modules and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 Silicate Measuring DeviceA Testomat®808 SiO2 silicate is used for permanent silicate monitoring. The Testomat®808 SiO2 is a measuring instrument that is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. Here, the silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue colour whose intensity is proportional to the silicate content. The measuring device records the colour intensity by means of an optical sensor and converts it into a measured value that represents the silicate content of the water. The Testomat®808 SiO2 is housed in a compact casing that includes a user interface, display and control elements as well as connections for water samples and drainage.The use of the Testomat 808®SiO2 ensures reliable compliance with the limit value for SiO2 of 0.4 mg/l recommended by the DGSV and AKI. In the event of a limit value being exceeded, it is possible to transmit this to the optionally available NeoTecMaster® or to directly activate an optical warning element. Continuous monitoring of the silicate content is necessary to effectively prevent any deposits and subsequent damage to the device technology and instruments.By using the Testomat®808 SiO2, companies can continuously monitor the silicate content and take appropriate measures to prevent deposits if necessary.Optional components of the system UV Disinfection MiniUV disinfection is used in water treatment to inactivate the water from any microorganisms such as bacteria, viruses and protozoa. UV stands for ultraviolet radiation, which is produced by special UV lamps. The principle of UV disinfection is based on inactivating the DNA or RNA of the microorganisms, preventing them from reproducing and causing disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be killed. Unlike other disinfection methods such as chlorination or ozonation, UV disinfection does not require the addition of chemicals to the water. It produces no unwanted by-products and does not alter the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of the disinfection remains constant. Since no chemicals are used in UV disinfection, there are no harmful residues in the water or the environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method of killing microorganisms but is not used to remove pollutants, particles or chemical contaminants in the water.The optional UV system is integrated into the plant's continuously operating recirculation system.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. Pyrogens are substances that can cause an immunological reaction in the body, especially an increase in body temperature. They are usually endotoxins released by bacteria such as Escherichia coli (E. coli). The pyrogen filter consists of a filter element that has a very fine pore size, typically in the range of 0.1 to 0.2 microns. This allows the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. In the modular water treatment system, the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection.After the water has been cleaned of particles and microorganisms, it is passed through the pyrogen filter to remove possible pyrogens. Pyrogen filters are particularly important in industries where the absence of pyrogens in the water is crucial, for example in the ambulatory care sector to ensure optimal quality of instrumentation for surgery. Overall, pyrogen filters play an important role in water treatment to ensure the quality and purity of water and to minimise potential exposure to pyrogenic substances.The optional pyrogen filter is located directly behind the UV unit and can thus also be integrated into the unit's continuously operating recirculation system.Lifting systemThe lifting system is used for the reliable discharge of the wastewater volumes from the individual process steps. The main volume flows are the wastewater from the regeneration of the softening plant and the concentrate from the reverse osmosis. The lifting unit also collects the discontinuously occurring wastewater flows from the silicate meter, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed.The use of a lifting unit is recommended if the wastewater pipes cannot be connected to a ground-level wastewater connection.NeoTecMaster® 5 inch with housingData acquisition as well as its visualisation and processing are only some of the relevant topics in the environment of modern water treatment. The networking of different measuring systems and their integration into the process automation is an elementary component. The NeoTecMaster® was developed specifically for this task and is a multi-parameter system that is open to all manufacturers.Data recording and visualisation of the NeoTecMasterThe visualisation of the multicontroller is done via trend graphs. All set parameters can be selected and deselected. All recorded data is saved on a USB stick and can also be accessed online within the company network. You can monitor and visualise up to 8 parameters via the shift key.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 protection class housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment system, also for systems in outpatient clinics.Viewing windowRittal enclosures are fitted with viewing windows, which provide an overview of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable visual inspection of the equipment located in the enclosure without the need to open the enclosure. This facilitates monitoring, maintenance and troubleshooting of components without compromising enclosure integrity. Viewing windows are usually made of a transparent material such as glass.Notes: Viewing windows in Rittal enclosures are only available for single-leaf doors. When selecting this option, please note that the required minimum room depth increases from 100 cm to 140 cm.LightingFurthermore, interior lighting with RGB colour tones is optionally available for this design variant. These can be placed independently depending on the equipment of the cabinet systems. Please note that this option is only available for cabinets with a viewing window.Aqua-Stop (solenoid valve shut-off)An Aqua-Stop is a safety mechanism used in water supply systems to stop or restrict the flow of water when a fault or leak occurs. It is usually an automatic closing mechanism that closes the water supply valve to prevent major water damage.A solenoid valve is a type of shut-off valve controlled by the use of an electromagnetic field. In water treatment, a solenoid valve is used to shut off or control the flow of water. The solenoid valve consists of an electromagnetic coil system and a valve mechanism. By applying an electrical voltage to the coil, a magnetic field is generated which influences the valve mechanism. Depending on the application, the solenoid valve can be opened or closed to allow or block the flow of water. In combination, additional safety and control over the water flow can be provided.The Aqua-Stop is located directly as the first element behind the main water connection of the system. The associated solenoid valve is coupled with two sensors, one of which continuously monitors the floor pans of both cabinet systems. The floor pans are an integral part of the cabinet systems. Collecting trayThe floor pans are an optional part of the cabinet systems.

Our 4- or 8- channel system allows the processing of up to four or eight measurement signals. For this purpose, 4-20 mA/ RS232 as well as Modbus RTU are available as signal inputs. Based on the received data a visualization as well as a trend display takes place. Through modular addition of optional modules (slaves) the realization of popular control concepts is possible.Advantages:Simple operation Integration of the Testomat® device world Integration into the existing control cabinet, alternatively we offer our NeoTecMaster® housingModular function range expandable by NeoTec slave modules (measure, control, control)Available as installation variant or structure variant Contents: NeoTecMaster® 5 inch - 4 channel system (optionally expandable to 8 channels) with Modbus interface and RS232 input for data communicationNeoTec Slave 4-20mA module (inputs: 8x 20mA)NeoTecMaster® IP66 housing for 5" display, light grey with front foilUSB stick for NeoTecMaster® 8GBInstallation of NeoTecMaster® in housing incl. parameterisation and cabling of the NeoTecMaster®Universal power supply 24V/6A DC (100-240V AC) (144 Watt)

The Testomat® 808 SIO02 is a device that was developed for measuring and monitoring deionised water (fully demineralised water) in medical facilities.  The central importance of silicate monitoring  Silicate measurement using the Testomat® 808 SIO02 is an essential aspect of compliance with a defined limit value. Precise silicate monitoring is particularly important in process water treatment in hospitals in order to prevent deposits on devices and medical devices (MD) and to ensure the effectiveness of the water treatment systems. You can choose between 10 limit values in the range from 0.3 to 1.2 ppm. By regularly monitoring the silicate content and compliance with the limit values, potential problems can be identified at an early stage and suitable measures can be taken to optimise water treatment.

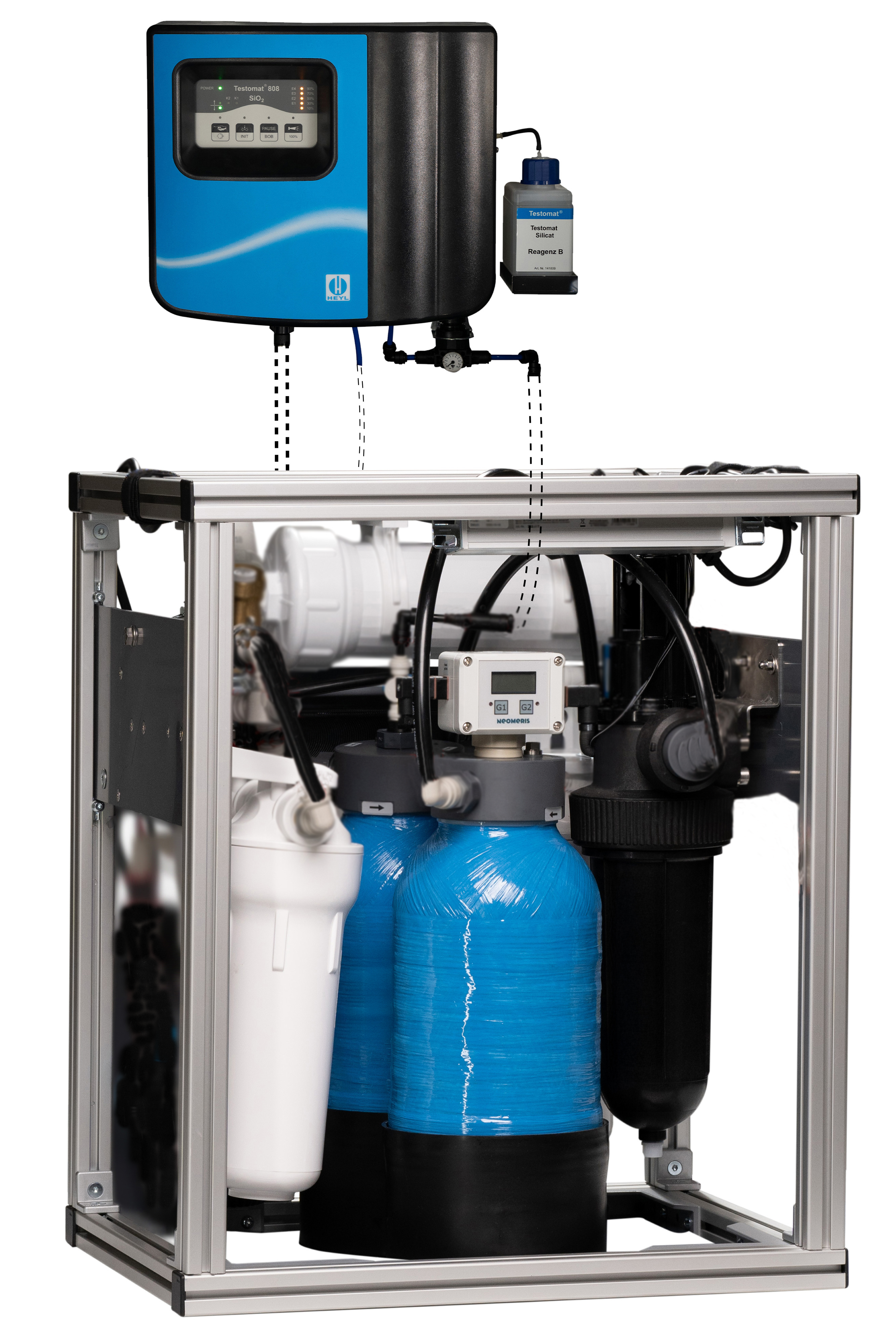

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. Lifting systemThe lifting system is used to reliably remove the wastewater volumes generated from the individual process steps. from the individual process steps. The main volume flows here are the waste water from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate meter are also collected in the lifting unit. wastewater flows from the silicate meter, the system separator and the rinse water rinsing water, which is produced when the input filters (in particular activated carbon filters) is also collected. Collection trays Optional components of the system: NeoTecMaster® 5 inch with housingViewing windowLightingAqua-Stop (solenoid valve shut-off)

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. Lifting systemThe lifting system is used to reliably remove the wastewater volumes generated from the individual process steps. from the individual process steps. The main volume flows here are the waste water from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate meter are also collected in the lifting unit. wastewater flows from the silicate meter, the system separator and the rinse water rinsing water, which is produced when the input filters (in particular activated carbon filters) NeoTecMaster® 5 inch with housingData acquisition and its visualization and processing are just some of the relevant topics in the environment of a modern some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system.The data recording and visualization of the NeoTecMaster®The visualization of the multicontroller takes place via trend graphs. All configured parameters can be selected and deselected. All recorded data is saved on a USB stick and is also available online can also be accessed online within the company network. You can monitor and visualize up to 8 parameters via the toggle button.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment plant, including water treatment system, even for systems in outpatient clinics. Collection trayOptional components of the system: Viewing windowLightingAqua-Stop (solenoid valve shut-off)

The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate continuously monitor the silicate content and, if necessary, take appropriate measures to prevent deposits. Lifting systemThe lifting system is used to reliably discharge the wastewater volumes from the individual process steps. The main volume flows here are the wastewater from the regeneration of the softening system and the concentrate from reverse osmosis. The discontinuous wastewater flows from the silicate measuring device, the system separator and the rinsing water that occurs when the input filters (especially activated carbon filters) are changed are also collected in the lifting unit. Optional components of the systemUV disinfection MiniPyrogen filterNeoTecMaster® 5 inch with housingViewing windowLightingAqua-Stop (solenoid valve shut-off)Collection tray

Note: The system shown, consisting of two cabinets, is the fully equipped version of our system. The basic price is therefore supplemented by the selected options.The modular water treatment system was specially developed for the outpatient care sector. While the overall geometry, the system can be adapted to the different degrees of water hardness in Germany, the the quantities required in different outpatient centers, as well as to the initial water quality, including any treatment treatment steps on the part of the supplier. The modularity offers the decisive advantage that the overall concept can be adapted to the respective water type or composition as well as the supplier's treatment processes. PrincipleDue to its modular design, the water treatment system can be adapted to the different conditions in outpatient care. to the different conditions in the outpatient care sector. be adapted. These include different degrees of water hardness, quantities required in outpatient centers, the initial water quality and the treatment steps. Optimum water treatment is relevant for the reliable availability of instruments for for operations. It also goes hand in hand with the protection of and equipment technology. Furthermore, any damage to the damage to the instruments or equipment is always directly directly related to the issue of patient safety. For the pre-filtration, a softening system and a reverse osmosis system with a 100 liter permeate a reverse osmosis system with a 100 liter permeate tank including surge tank and sterile filter as well as permanent conductivity and silicate silicate monitoring using a Testomat® 808 SiO2 on the blending bed and recirculation system with integrated UV system and pyrogen filter Wastewater discharge via brine lifting unitAs an optional component, the treatment plant can be extended by an integrated wastewater lifting unit. integrated wastewater lifting unit, which discharges the generated and and collected wastewater into the sewer system. The main wastewater volume flows are the wastewater from the regeneration of the of the softening plant and the concentrate from the reverse osmosis should be mentioned. The discontinuously occurring wastewater flows from the wastewater flows from the silicate meter, the system separator and the rinsing water that is produced when the input filters (in particular Cut-off via system separatorTo protect the drinking water network from contamination by treated water or changes in the natural composition of the water, the system separator is also used. water or changes in the natural composition of the of the drinking water fed into the system due to the technical treatment the installation of a system separator is mandatory. The system has an integrated system separator (type BA), which is located directly behind the Aqua-Stop of the water connection.Rittal enclosure systemsThe system components are installed in two Rittal enclosures. Rittal is a leading manufacturer of enclosure systems and offers a wide range of range of solutions for the secure storage and protection of electronic electronic components and devices. Rittal enclosure systems are available in various sizes, designs and configurations and configurations and are suitable for various application areas such as IT infrastructure industrial automation, power distribution and telecommunications.Rittal enclosure systems are characterized by high quality, functionality and flexibility. and flexibility. Rittal enclosures are made from high-quality materials and offer a robust construction that provides reliable protection reliable protection for the equipment inside. They are protected against dust, dirt, moisture, vibrations and other environmental environmental influences. Rittal enclosure systems are modular which means that they can be adapted to the specific requirements and the available space. They offer a variety of options for mounting accessories such as shelves, cable management, climate control units and power distribution units. The enclosure systems from Rittal offer various security features such as lockable doors, security locks and access control systems, to prevent unauthorized access to the equipment and ensure data security. data security. For the installation of the modular water treatment plant from HeylNeomeris only requires a minimum footprint of footprint of 1.60m x 1m is required. It consists of 2 cabinets that are 80cm wide and 60cm deep. It is possible to work with double-wing doors and thus, due to the depth of 60cm and a double of 60cm and a double wing door with a dimension of 40cm, this results in a The cabinets used are made from sturdy sheet steel modules and have a high-quality surface coating. and have a high-quality surface coating.Standard equipment of the systemTestomat® 808 SiO2 silicate measuring deviceA Testomat® 808 SiO2 silicate measuring device is used for continuous silicate monitoring. SiO2 silicate is used. The Testomat®808 SiO2 is a measuring device, which is used to determine the silicate content in water. The measuring principle of the Testomat®808 SiO2 is based on the so-called molybdenum blue method. The silicate in the water reacts with a reagent solution containing molybdenum. This reaction produces a blue color whose intensity is proportional to the silicate content. The measuring device records the color intensity using an optical sensor and converts it into a measured value that represents the silicate content of the water. of the water. The Testomat®808 SiO2 is housed in a compact casing which contains a user interface, display and control elements as well as and connections for water samples and drainage.The use of Testomat 808®SiO2 ensures reliable compliance with the requirements of the DGSV and AKSV. compliance with the limit value for SiO2 recommended by the DGSV and AKI of of 0.4 mg/l is ensured.If the limit value is exceeded, it is possible to report this to the optionally available to the optionally available NeoTecMaster® or directly to an optical warning directly to an optical warning element. Continuous monitoring of the silicate content is required, deposits and any resulting damage to equipment and instruments. damage to device technology and instruments effectively. By using the Testomat®808 SiO2, companies can continuously monitor the silicate silicate content and, if necessary, take appropriate measures to prevent deposits.UV Disinfection MiniUV disinfection is used in water treatment to remove any microorganisms from the water. water from any microorganisms such as bacteria, viruses and protozoa. protozoa. UV stands for ultraviolet radiation, which is generated by generated by special UV lamps. The principle of UV disinfection is based on the inactivation of the microorganisms' DNA or RNA, preventing them from multiplying and causing disease. cause disease. UV disinfection is relevant because UV radiation is effective against a wide range of microorganisms, including bacteria, viruses and protozoa such as Giardia and Cryptosporidium. A high inactivation rate can be achieved and most pathogenic organisms in the water can be pathogenic organisms in the water can be killed. In contrast to other disinfection methods such as chlorination or ozonation, UV disinfection UV disinfection does not require the addition of chemicals to the water. It does not produce any unwanted by-products and does not change the the taste or smell of the water. UV disinfection is a reliable method of killing microorganisms. As long as the UV lamp is properly maintained, the effectiveness of disinfection remains constant. remains constant. As no chemicals are used in UV disinfection, there are no harmful chemicals, there are no harmful residues in the water or the environment. environment. It is an environmentally friendly disinfection method that reduces the ecological footprint of water treatment. It is important to note that UV disinfection is an effective method for killing microorganisms microorganisms, but not for removing pollutants, particles or chemical impurities in the water.Pyrogen filterA pyrogen filter is a special type of filter used in water treatment to remove pyrogens from water. to remove pyrogens from the water. Pyrogens are substances that can cause an immunological reaction in the body in the body, in particular an increase in body temperature. As a rule These are usually endotoxins, which are produced by bacteria such as Escherichia coli (E. coli), for example. The pyrogen filter consists of a filter element that has a very fine pore size typically in the range of 0.1 to 0.2 micrometers. This enables the filter to effectively retain particles and microorganisms, including pyrogenic bacteria that may be present in the water. may be present in the water. In the modular water treatment system the pyrogen filter is used after other pre-treatment stages such as filtration and disinfection. After the water has been cleaned of particles and microorganisms particles and microorganisms, it is passed through the pyrogen filter to remove remove possible pyrogens. Pyrogen filters are particularly important in industries in which the absence of pyrogens in the water is of crucial importance, for example in the ambulatory care sector, in order to ensure the optimum quality of instruments for operations. Overall, pyrogen filters play an important role in water treatment, to ensure the quality and purity of the water and minimize potential exposure to pyrogenic substances. NeoTecMaster® 5 inch with housingData acquisition and its visualization and processing are just some of the relevant topics in the environment of a modern some of the relevant topics in the field of modern water treatment. The networking of different measuring systems and their integration into process automation is an elementary component here. The NeoTecMaster® was specially developed for this task and is a manufacturer-independent multi-parameter system.The data recording and visualization of the NeoTecMaster®The visualization of the multicontroller takes place via trend graphs. All configured parameters can be selected and deselected. All recorded data is saved on a USB stick and is also available online can also be accessed online within the company network. You can monitor and visualize up to 8 parameters via the toggle button.The NeoTecMaster is available with a 5 -inch screen and additional IP 66 housing.The NeoTecMaster® Multicontroller concept is a basic building block for every water treatment plant, including water treatment system, even for systems in outpatient clinics.Viewing windowViewing windows are installed in the Rittal enclosures, which provide an overview of the measurement technology. of the measurement technology. The use of viewing windows in Rittal enclosure systems has several advantages. They enable a visual inspection of the of the devices in the enclosure without having to open the enclosure. having to be opened. This facilitates the monitoring, maintenance and troubleshooting of components without compromising the integrity of the is compromised. The viewing windows are usually made of a transparent transparent material such as glass.Notes: Viewing windows in the Rittal enclosures are only available for single-leaf doors. When selecting this option, please ensure that the required minimum room depth increases from increases from 100 cm to 140 cm. Aqua-Stop (solenoid valve shut-off)An Aqua-Stop is a safety mechanism used in water supply systems to stop the flow of water. used in water supply systems to stop or limit the flow of water limit the flow of water if a malfunction or leak occurs. It is It is usually an automatic closing mechanism that closes the water water supply valve to prevent major water damage.A solenoid valve is a type of shut-off valve that is controlled by the use of an electromagnetic field. controlled by the use of an electromagnetic field. In water treatment a solenoid valve is used to shut off or regulate the flow of water. used. The solenoid valve consists of an electromagnetic coil system and a valve mechanism. By applying an voltage to the coil generates a magnetic field that influences the valve mechanism. influences the valve mechanism. Depending on the application, the solenoid valve can opened or closed to allow or block the flow of water. or block it. In combination, additional safety and control over the control over the water flow can be guaranteed.The Aqua-Stop is located directly behind the main water connection of the system as the first element. water connection of the system. The associated solenoid valve is coupled with two sensors, one of which continuously monitors the base trays of each of the two cabinet systems is continuously monitored. Collection trayOptional components of the system:Lighting
